Private VLANs w/ VMware DVS + Cisco Nexus 5K: Config Reference

When configuring the networks of a virtualized environment, private VLANs expand the functionality of a standard VLAN.  This article describes the configuration of PVLANs from both the VMware and Cisco perspectives.  The purpose of this article is to provide a brief configuration overview.  It's likely you already know what PVLANs are and how they work, so I won't go into much detail there.  For more information about VLANs and PVLANs, check out Cisco's Securing Networks with Private VLANs and VLAN Access Control Lists.

Usage Scenarios

1. DMZ security - Servers running in a DMZ can be isolated from one another. Should a DMZ guest be compromised, the guest is unable to communicate with any other guest in the the DMZ (given each are a part of an isolated PVLAN)
2. Hosted cloud infrastructure - A customer environment (consisting of multiple guests) in a community PVLAN are able to communicate amongst themselves, but cannot communicate with a different community PVLAN
3. Overcome standard VLAN limitations - While PVLANs exist with their own set of limitations, private VLANs greatly extend the functionality and usefulness of a standard VLAN

Configuration Overview

vlan 2410 int: 192.168.7.1 (primary 2410, secondary 2411) vlan 2412 int: 192.168.8.1 (primary 2412, secondary 2413) vlan 2411 - isolated vlan 2413 - community bperove-vm1: 192.168.7.10 - dvPortGroup1 - primary 2410, secondary 2411 bperove-vm2: 192.168.7.11 - dvPortGroup1 - primary 2410, secondary 2411 bperove-vm3: 192.168.8.10 - dvPortGroup2 - primary 2412, secondary 2413 bperove-vm4: 192.168.8.11 - dvPortGroup2 - primary 2412, secondary 2413 bperove-vm5: 192.168.8.12 - dvPortGroup2 - primary 2412, secondary 2413 bperove-vm6: 192.168.8.13 - dvPortGroup3 - primary 2412, secondary 2412

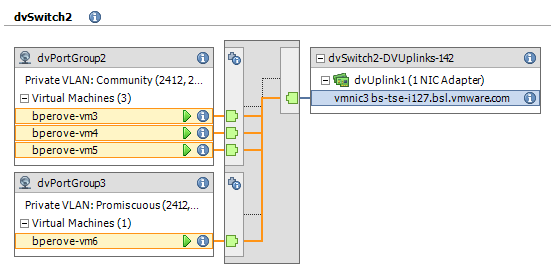

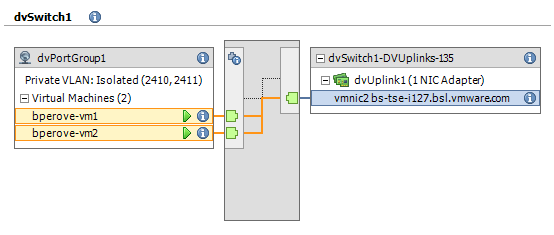

Configuration of VMware vDS (DVS)

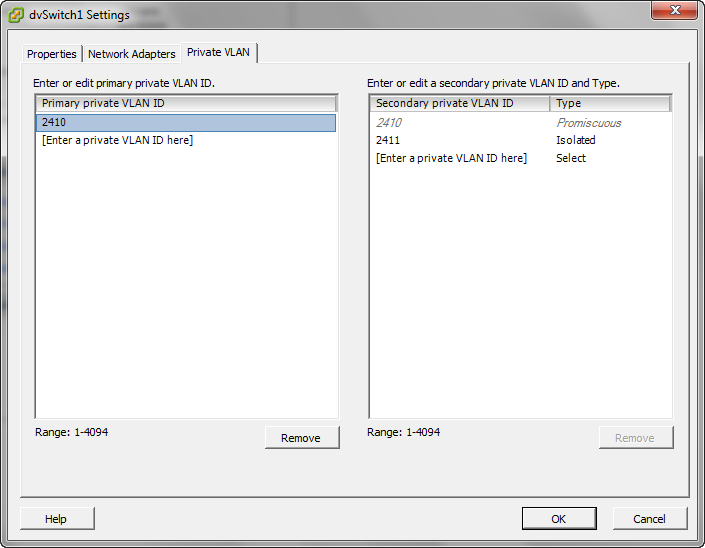

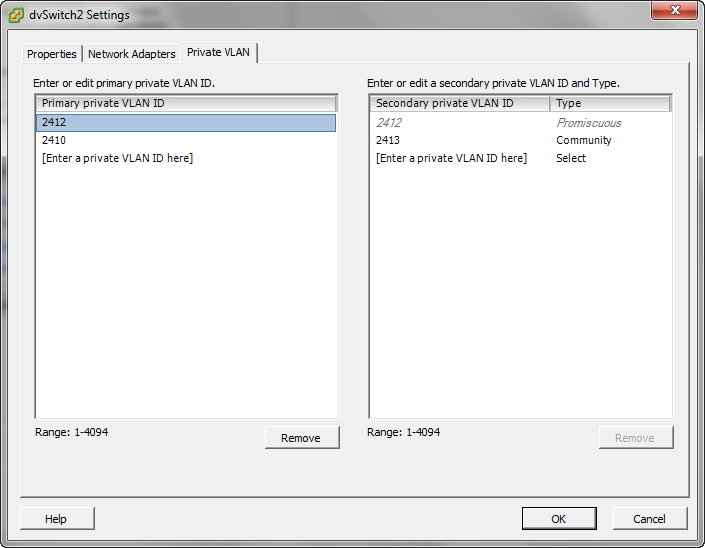

dvSwitch Settings

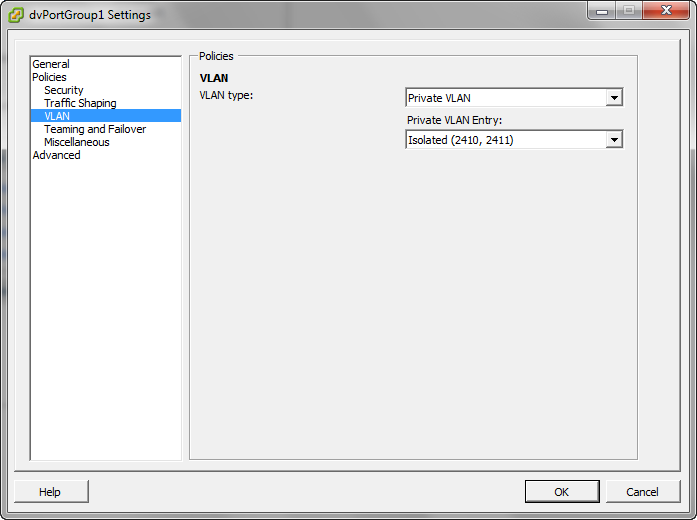

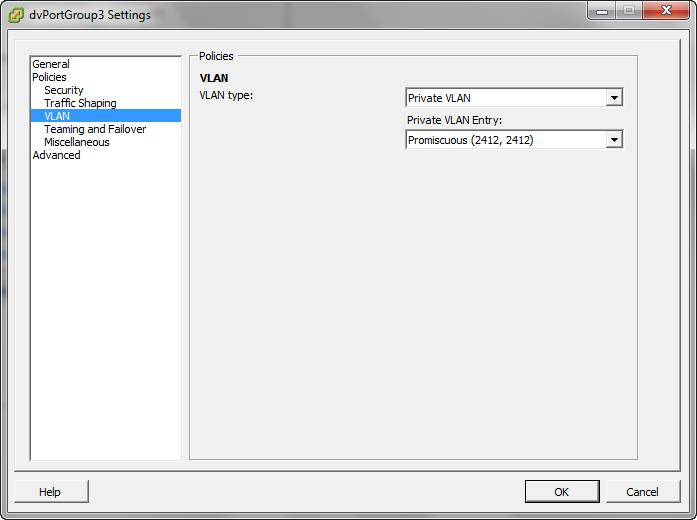

dvPortGroup Settings

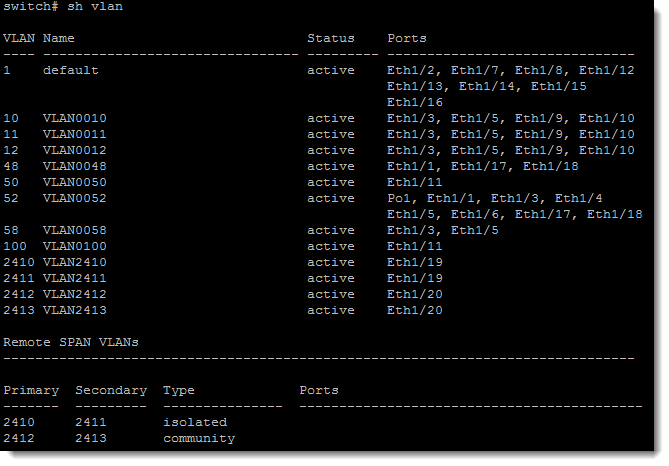

VLAN Configuration

vlan 2410
  private-vlan primary
  private-vlan association 2411
vlan 2411
  private-vlan isolated
vlan 2412
  private-vlan primary
  private-vlan association 2413
vlan 2413
  private-vlan community

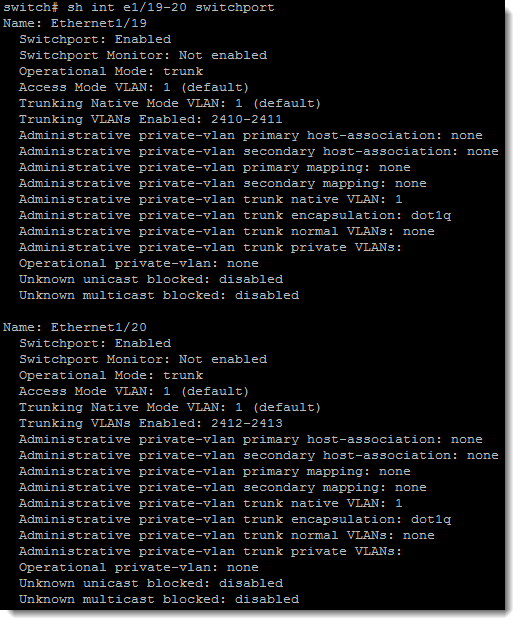

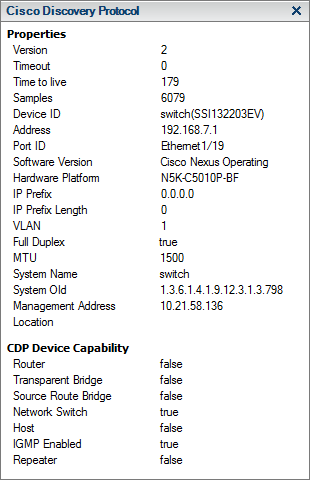

Interface Configuration

interface Ethernet1/19
  description bperove - bs-tse-i127 - vmnic2
  switchport mode trunk
  switchport trunk allowed vlan 2410-2411

interface Ethernet1/20
  description bperove - bs-tse-i127 - vmnic3
  switchport mode trunk
  switchport trunk allowed vlan 2412-2413

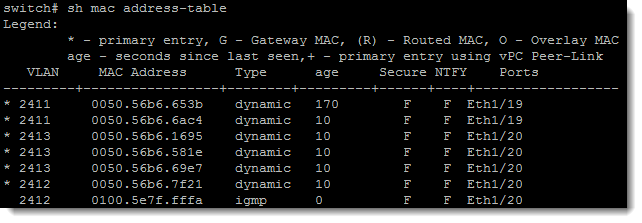

Communication logic

vm1 can ping vlan 2410 int @ 192.168.7.1, but cannot ping vm2 vm2 can ping vlan 2410 int @ 192.168.7.1, but cannot ping vm1 vm3-5 can ping vlan 2412 int @ 192.168.8.1, and can all ping each other vm6 can ping vlan 2412 int @ 192.168.8.1, vm3-5, and vm3-5 can ping vm6 vm1-2 cannot ping vm3-6
